# CredFlow

An undercollateralized lending protocol powered by cross-chain credit scores.

CredFlow turns rich financial signals into a portable CredScore (300–850) that unlocks undercollateralized loans. Connect a wallet and we reconstruct your full DeFi footprint — Aave and Morpho repay history, Alchemy transfer graphs, sybil-risk analysis, and 37 ML features — in minutes. No on-chain history yet? Link a bank account via Reclaim zkTLS and get an accurate score from verified balance and capacity.

Once scored, mint a soulbound CredScore SBT and borrow with less collateral than standard over-collateralized DeFi. Five autonomous agents power the application: underwriting, cross-chain sync, portfolio monitoring, liquidation, and rate optimization.

Borrowing: Robinhood Chain testnet, Arbitrum Sepolia, Base Sepolia. Credit state syncs via LayerZero V2.

---

## Chain Explorers and Parameters

Robinhood Chain testnet (hub)
- Chain ID: 46630
- LayerZero EID: 40451
- RPC: https://rpc.testnet.chain.robinhood.com
- Explorer: https://explorer.testnet.chain.robinhood.com

Arbitrum Sepolia
- Chain ID: 421614
- LayerZero EID: 40231
- Explorer: https://sepolia.arbiscan.io

Base Sepolia
- Chain ID: 84532
- LayerZero EID: 40245
- Explorer: https://sepolia.basescan.org

Address source of truth:
- docs/addresses.json
- docs/spoke-arbitrum-addresses.json
- docs/spoke-base-addresses.json

Robinhood official contracts docs: https://docs.robinhood.com/chain/contracts/

---

## Deployed Contracts (Hub — Robinhood Chain Testnet)

- CredScoreSBT — soulbound credit profile (score, sub-scores, loan status, SHAP CID)
  https://explorer.testnet.chain.robinhood.com/address/0x941380a70Be9322fE1bCa65D13343323c5824359

- CredScoreEngine — on-chain score formula + Reclaim attestation → mint/update SBT
  https://explorer.testnet.chain.robinhood.com/address/0xD8Eeb09C86b6A910DbBcB1D83020Bd4a8dBdAEEb

- CredFlowLending — hub borrow / repay / liquidate; reads SBT for LTV tiers
  https://explorer.testnet.chain.robinhood.com/address/0xe7B1D8BeCE6D3F1F33a65f2534d1AB7E61a7382A

- CredFlowLP — USDG liquidity pool; utilization for rate optimizer
  https://explorer.testnet.chain.robinhood.com/address/0x571DD8F69798BaE3b442077F566e83719F6827aa

- CredFlowOApp — LayerZero broadcaster (score / loan / default / repaid)
  https://explorer.testnet.chain.robinhood.com/address/0x3E39e65fAb3DBbD506c34c6c3a0e8e64994583b4

- ChainlinkOracle — WETH/USD for hub collateral
  https://explorer.testnet.chain.robinhood.com/address/0x0733e87b12c0466460c2eC99ade11C4e0ce542c3

- MockChainlinkFeed (WETH/USD) — testnet price feed
  https://explorer.testnet.chain.robinhood.com/address/0xDE969d906510F98EDA7AFFA3F8D248169a74c2A4

- USDG — hub borrow asset
  https://explorer.testnet.chain.robinhood.com/address/0x7E955252E15c84f5768B83c41a71F9eba181802F

- WETH — hub collateral
  https://explorer.testnet.chain.robinhood.com/address/0x7943e237c7F95DA44E0301572D358911207852Fa

- LayerZero EndpointV2
  https://explorer.testnet.chain.robinhood.com/address/0x3aCAAf60502791D199a5a5F0B173D78229eBFe32

---

## Deployed Contracts (Arbitrum Sepolia)

- CredFlowOApp — mirrors score, loan lock, blacklist from hub
  https://sepolia.arbiscan.io/address/0xebE2fDe0781ea6f57c1F5EDd775Fe8D41b9C6830

- CredFlowSpokeLending — spoke borrow / repay
  https://sepolia.arbiscan.io/address/0xd834854Eb7d064EBb74cED270eb3431f7e816728

- CredFlowLP — USDC pool
  https://sepolia.arbiscan.io/address/0x60BD7ca901f6F23ac0A4D640B3DEeCEDc9135483

- ChainlinkOracle
  https://sepolia.arbiscan.io/address/0x08f18d1257C8665fe6DAD689B8E1Acd9120C374b

- ChainlinkMirrorFeed (WETH/USD)
  https://sepolia.arbiscan.io/address/0xb0cc4Fbe99f7426b5b345008944a23F0db54Bdd6

- WETH
  https://sepolia.arbiscan.io/address/0x1dF462e2712496373A347f8ad10802a5E95f053D

- USDC
  https://sepolia.arbiscan.io/address/0x75faf114eafb1BDbe2F0316DF893fd58CE46AA4d

- Mainnet Chainlink ETH/USD (mirror source)
  https://arbiscan.io/address/0x639Fe6ab55C921f74e7fac1ee960C0B6293ba612

- CredScoreSBT: not deployed on spokes (hub only)

---

## Deployed Contracts (Base Sepolia)

- CredFlowOApp
  https://sepolia.basescan.org/address/0xB830EC92c606f3ECF03d9fE223F873dA2dbd2620

- CredFlowSpokeLending
  https://sepolia.basescan.org/address/0x99269E64c4Dfb227648E079Bf34E6857B6c300A4

- CredFlowLP
  https://sepolia.basescan.org/address/0x48F669f0AA0271Ef56471841a0BfDED2A71aAc13

- ChainlinkOracle
  https://sepolia.basescan.org/address/0xFed19b2508ac23dDadAE680C005152FC4DE73368

- ChainlinkMirrorFeed (WETH/USD)
  https://sepolia.basescan.org/address/0x76B27936a660C9BC0b25Cb0dF86F394F0dd840F2

- WETH (canonical Base Sepolia)
  https://sepolia.basescan.org/address/0x4200000000000000000000000000000000000006

- USDC
  https://sepolia.basescan.org/address/0x036CbD53842c5426634e7929541eC2318f3dCF7e

- Mainnet Chainlink ETH/USD (mirror source)
  https://basescan.org/address/0x71041dddad3595F9CEd3DcCFBe3D1F4b0a16Bb70

- CredScoreSBT: not deployed on spokes (hub only)

---

## 1. Introduction

CredFlow is a credit-first lending product. It starts with knowing the borrower.

For experienced Web3 users: multi-protocol borrow/repay events (Aave V3, Morpho Blue, CredFlow), Alchemy transfer graphs, activity windows, liquidation history, and graph-based sybil detection → FICO-like CredScore with SHAP on IPFS.

For Web3 newcomers: optional Reclaim zkTLS bank verification folds verified balance and capacity into the on-chain score so thin wallets are not auto-rejected.

Approved scores become a CredScore SBT driving LTV tiers, interest rates, and lower collateral vs typical 150%+ DeFi. Five Python agents automate minting, cross-chain propagation, health polling (every 5 min), liquidation/blacklist, and rate tuning.

UI note: primary tabs use a server-side wallet (FRONTEND_PRIVATE_KEY in frontend/.env.local). AppShell routes through /api/wallet and /api/profile.

### Why Robinhood Chain Testnet

EVM-compatible L2 on Arbitrum stack. CredFlow anchors on-chain credit issuance here (CredScore SBT + underwriter agent) because:
- Standard Hardhat/ethers/viem tooling
- Low-cost SBT mints and agent broadcasts
- Native USDG + WETH (official Robinhood testnet tokens)
- Official LayerZero V2 chain (EID 40451)
- Faucet ecosystem for testnet liquidity
- Same CredScore syncs to Arbitrum/Base where Aave/Morpho history is indexed

### Current Scenario (Problem)

Traditional DeFi is over-collateralized regardless of repayment history. Pain points:
- Thin wallet history / sybil farms
- No portable credit across chains
- Siloed risk → double-borrows possible
- Bank capacity invisible without cryptographic verification

### The CredFlow Solution (Six Pillars)

1. Wallet-native credit report — indexers + XGBoost + R-GCN sybil + SHAP on IPFS
2. Bank path for newcomers — Reclaim zkTLS balance proof
3. Portable CredScore SBT — soulbound credit identity
4. Undercollateralized borrowing — LTV 40–85% by score tier
5. Five always-on agents — underwrite, sync, monitor, liquidate, optimize rates
6. Cross-chain credit sync — LayerZero V2 score/loan/default state
7. Supabase — profiles, score runs, loan events, LZ audit rows

### System Architecture (Summary)

Stack: Next.js frontend (AppShell, API routes, wallet-server, loan-server, agent-client) → FastAPI ML engine (port 8000: scoring_api, XGBoost, sybil, Reclaim, indexers, agent_handlers) → five Python agents → Robinhood hub contracts (SBT, Engine, Lending, OApp) → LayerZero V2 → Arbitrum/Base OApp + SpokeLending.

### Full Borrower Journey (Summary)

Phases: Build Credit (optional prep wallet → POST /score → optional Reclaim → mint SBT) → Borrow (hub or spoke; hub triggers crosschain_sync) → Active Loan (portfolio_monitor 300s, rate_optimizer 3600s) → Repay (rescore + underwriter + sync) OR Stress (LTV/overdue → liquidation_agent → MSG_DEFAULT).

Stage summary:
- Prep wallet: Aave/Morpho scripts, no agents
- Score: ML API only
- Score complete: crosschain_sync
- Mint SBT: underwriter → crosschain_sync
- Hub borrow USDG: crosschain_sync (loan_active)
- Spoke borrow USDC: reads OApp, no agent
- Active loan: portfolio_monitor + rate_optimizer
- Repay: scoring API → underwriter → crosschain_sync
- Default: portfolio_monitor → liquidation_agent → crosschain_sync

---

## 2. The Five Agents

Agents live in agents/. HTTP at /agents/* via ml/agent_handlers.py. Scheduler: npm run agents:serve (agents/scheduler.py).

Product roles:
- Underwriter — mint/update CredScore SBT on-chain
- Cross-chain sync — propagate score, loan-active, repaid, default to all markets
- Portfolio monitor — LTV breaches and calendar overdue (every 300s)
- Liquidation — seize collateral, blacklist sybil rings, broadcast defaults
- Rate optimizer — adjust pool baseRate from utilization (every 3600s on hub)

### Underwriter Agent (agents/underwriter_agent.py)

Triggers: POST /api/mint, post-repay rescore, POST /agents/underwrite
Wallet: AGENT_PRIVATE_KEY

Only agent writing CredScoreSBT and CredScoreEngine.

Flow summary: blacklist check → hasProfile guard → fetch score (POST /score or snapshot) → hard rules (sybil high = reject, score < 500 reject, approved false reject) → Groq review for borderline 480–520 → on-chain mint/update (Reclaim path via Engine.mintScore, else SBT direct) → caller triggers sync-score.

Does NOT run on borrow.

### Cross-Chain Sync Agent (agents/sync_service.py, agents/crosschain_sync.py)

Triggers: score complete, mint, hub borrow/repay, scheduler batch
Only writer to hub CredFlowOApp broadcasts.

Functions:
- broadcastScore → MSG_SCORE_UPDATE (1)
- broadcastLoanActive → MSG_LOAN_ACTIVE (2)
- broadcastRepaid → MSG_REPAID (4)
- broadcastDefault → MSG_DEFAULT (3) — via liquidation_agent

Hub borrow sync: verify activeLoanId → read SBT score → broadcastScore + broadcastLoanActive to EIDs 40231 and 40245 (four hub txs total pattern).

Hub repay sync: broadcastScore + broadcastRepaid to both spokes.

LZ options must be non-empty (agents/lz_options.py, layerzero/buildLzOptions.js).

### Portfolio Monitor Agent (agents/portfolio_monitor.py)

Every 300s on hub, Arbitrum, Base (AGENT_MONITOR_INTERVAL_SEC).

Per active loan: getCurrentLTV, check dueTime, Groq escalation → emitHealthWarning at LTV ≥ 75% → hand off to liquidation at LTV ≥ 85% or grace expired.

### Liquidation Agent (agents/liquidation_agent.py)

Triggers: portfolio monitor, POST /agents/liquidate

Steps: verify LTV ≥ 85% (or force_grace + ensure_liquidatable on testnet) → liquidate → hub graph analysis + Groq blacklist → sbt.blacklistLinkedWallets → hub.broadcast_default per wallet. LZ always from hub CredFlowAgent.

### Rate Optimizer Agent (agents/rate_optimizer.py)

Every 3600s on hub. Reads pool utilization + baseRate → Groq rate verdict → hard rules (util > 80% force +10bps, util < 50% force -10bps) → clamp 200–2000 bps → setBaseRate if changed. Individual borrowers still get score-tier rates at loan creation.

### Agent Scheduler and Triggers

Scheduled:
- 300s: portfolio_monitor (hub, arbitrum, base)
- 3600s: rate_optimizer (hub)
- 3600s: crosschain_sync batch (hub)

Event-driven (frontend/src/lib/agent-client.ts):
- Score complete → POST /agents/sync-score
- SBT mint → POST /agents/underwrite then sync-score
- Hub borrow → POST /agents/sync-loan event=created
- Hub repay → sync-loan repaid + rescore + underwrite rescore

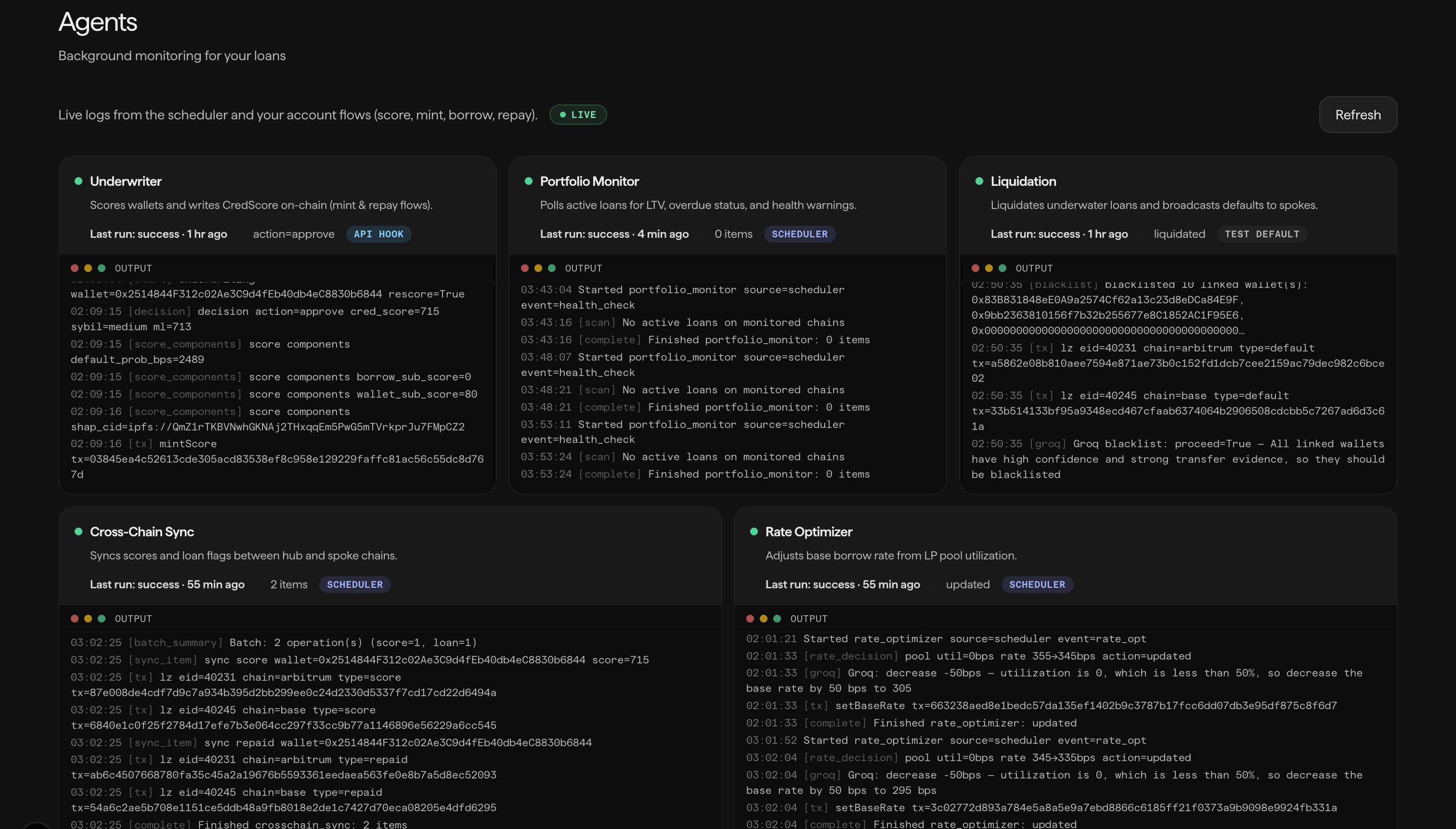

Logs: frontend Agents tab (/api/agents, /api/agents/stream).

### Agent Lifecycle Map (Summary)

Score complete → crosschain_sync → broadcastScore
Mint → underwriter → SBT → crosschain_sync
Hub borrow → crosschain_sync → broadcastLoanActive
Hub repay → underwriter rescore → crosschain_sync repaid+score
Scheduler 300s → portfolio_monitor → warnings/liquidation
Scheduler 3600s → rate_optimizer → setBaseRate
LTV/overdue → liquidation_agent → liquidate + broadcastDefault

### Groq LLM Decision Layer (agents/groq_brain.py)

Not a standalone agent — judgment inside four agents. Pydantic schemas; rule fallbacks on API failure.

- review_underwriting (underwriter) — borderline scores
- review_monitor_escalation (portfolio_monitor) — LTV/overdue severity
- review_liquidation_blacklist (liquidation) — sybil ring blacklist set
- review_rate_adjustment (rate_optimizer) — baseRate direction

Groq never signs transactions.

---

## 3. Credit Scoring System

Product core: multi-protocol financial picture + optional bank capacity → score trusted by borrow gates, SBT, and agents.

Entry: POST /score in ml/scoring_api.py → _score_sync()

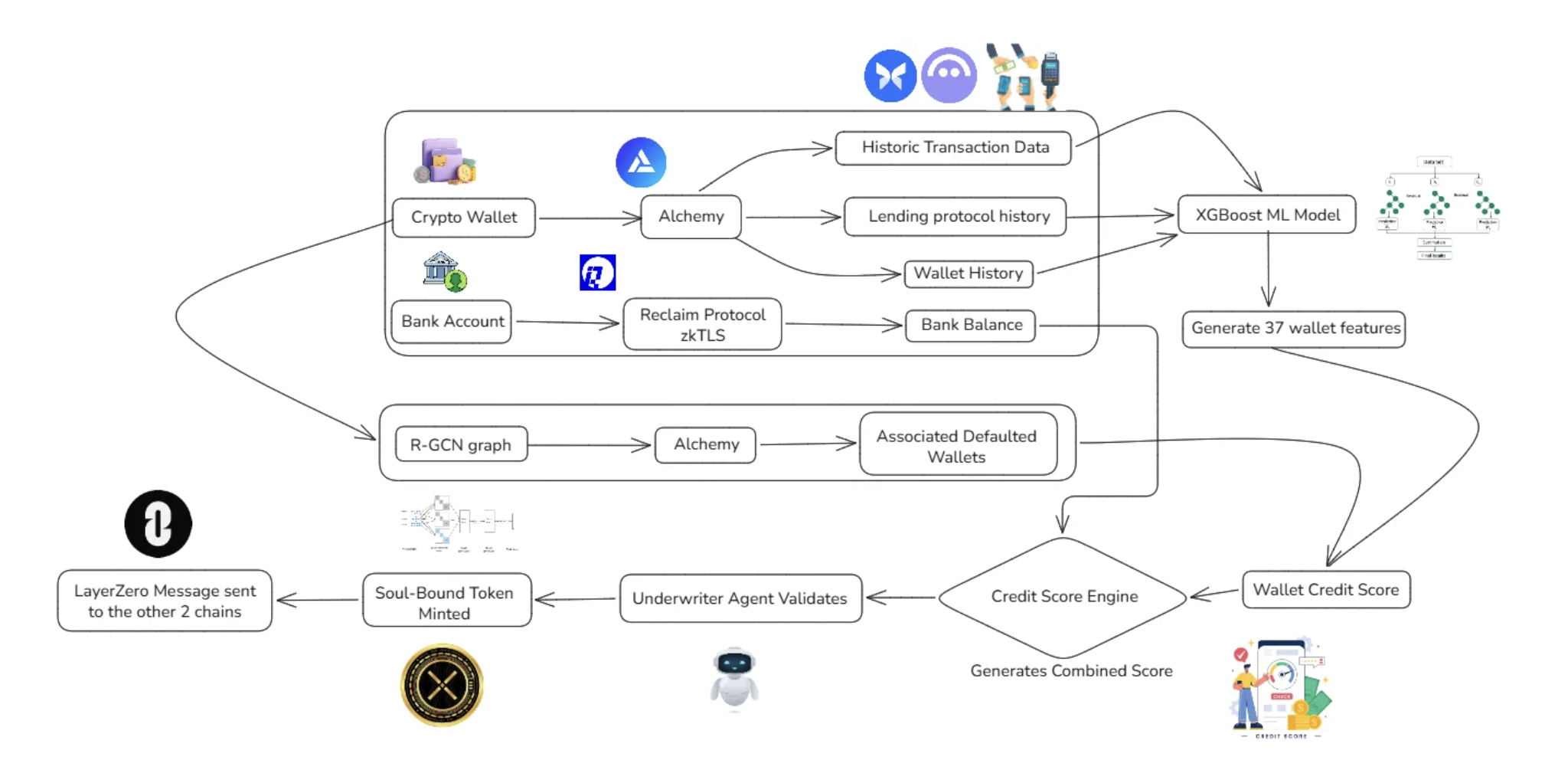

Pipeline summary:
- Phase A (parallel): indexer/collect_sources.py — Aave, Morpho, CredFlow hub/spoke, Alchemy wallet features, Robinhood pipeline
- Phase B (parallel): XGBoost default prob + R-GCN sybil check
- Optional Reclaim: bank zkTLS → compute_on_chain_cred_score
- Approval: on_chain_cred_score >= 500 AND sybil_risk != "high"
- Outputs: cred_score, ml_cred_score, on_chain_cred_score, sub-scores, SHAP CID, sybil verdict
- Frontend: frontend/src/app/api/score/route.ts → triggerSyncScore()

Env: ALCHEMY_API_KEY, USE_MOCK_DATA=1 for offline dev.

### Alchemy Wallet Data (indexer/alchemy_pipeline.py)

tx_count, wallet_first_seen/last_active, recent_transactions (sybil graph), eth_balance_wei, unique_contracts_interacted.

### Multi-Protocol Indexer

Orchestrator: indexer/collect_sources.py
Pipelines: robinhood_pipeline (46630), spoke_pipeline (Aave Arb+Base), morpho_pipeline (Base), spoke_credflow_pipeline, scoring_metrics.
Prep Wallet tab: frontend/src/lib/prep-wallet-server.ts seeds on-chain history via Hardhat scripts.

### Reclaim Protocol (zkTLS Bank Balance)

Files: ml/reclaim_service.py, ml/score_engine.py, scripts/reclaim_helper.js, contracts/CredScoreEngine.sol

User proves bank balance via Reclaim portal (zkTLS). CredFlow gets balance_usd_cents + proof_hash only — no credentials stored.

Session flow: create session → user opens portal → POST /receive-proof callback → resume POST /score with session_id. Sessions in-memory, 15-min TTL. ngrok auto-configured by npm run ml:serve.

Balance → capacity factor (bps): ≥$5k=9200, ≥$1k=9600, ≥$100=9800, <$100=10000
Formula mirrors CredScoreEngine on-chain.

Underwriter calls CredScoreEngine.mintScore(..., reclaimProofHash, ...) when Reclaim enabled.

Env: RECLAIM_ENABLED=1, RECLAIM_APP_ID, RECLAIM_APP_SECRET, RECLAIM_PROVIDER_ID, RECLAIM_CALLBACK_URL. USE_MOCK_RECLAIM=1 for offline.

INR balances converted via exchangerate.host (1h cache); fallback INR_PER_USD env (default 86).

### XGBoost Model

Train: npm run ml:train → scripts/train_ml.py
Artifacts: ml/credflow_model.pkl, ml/credflow_explainer.pkl

default_prob = model.predict_proba(features)[1]
cred_score = 300 + (1 - default_prob) * 550

SHAP → Pinata IPFS → CID on SBT. Sub-scores: borrow_sub_score, wallet_sub_score (ml/sub_scores.py).

### All 37 Model Features (Summary)

Source: ml/constants.py FEATURE_COLUMNS, ml/feature_engineering.py

- Wallet-level (7): wallet_age_days, tx_count, unique_contracts_interacted, active_months_last_6, days_since_last_active, longest_inactive_gap_days, eth_balance — from Alchemy
- CredFlow hub (3): credflow_borrow/repay/liquidation counts — Robinhood pipeline
- Aave V3 (5): supply, withdraw, borrow, repay, liquidation counts — Arb + Base
- Morpho Blue (4): supply, withdraw, borrow, repay — Base
- Cross-protocol derived (12): total_borrow/repay counts, repay_ratio (primary predictor), avg_blocks_to_repay, avg_loan_duration_days, collateral patterns, diversity flags, partial repay metrics, multi_protocol_borrow_flag
- Red-flag booleans (6): has_been_liquidated, wallet_age_flag (<7 days), zero_repays_multiple_borrows_flag, burst_activity_flag, aave_only_wallet_flag, borrow_then_transfer_out_flag

### R-GCN Sybil Detection

Files: ml/sybil_detector.py, ml/sybil_model.pt, ml/on_chain_blacklist.py
Train: npm run ml:sybil-train

Graph from Alchemy transfers + blacklist seeds. Hard reject if defaulter_links > 0. R-GCN inference or heuristic fallback. Organic floor for small honest wallets. sybil_risk high = hard reject regardless of score.

At default: ml/graph_analysis.py identifies linked wallets for blacklist.

### Underwriter and SBT Mint

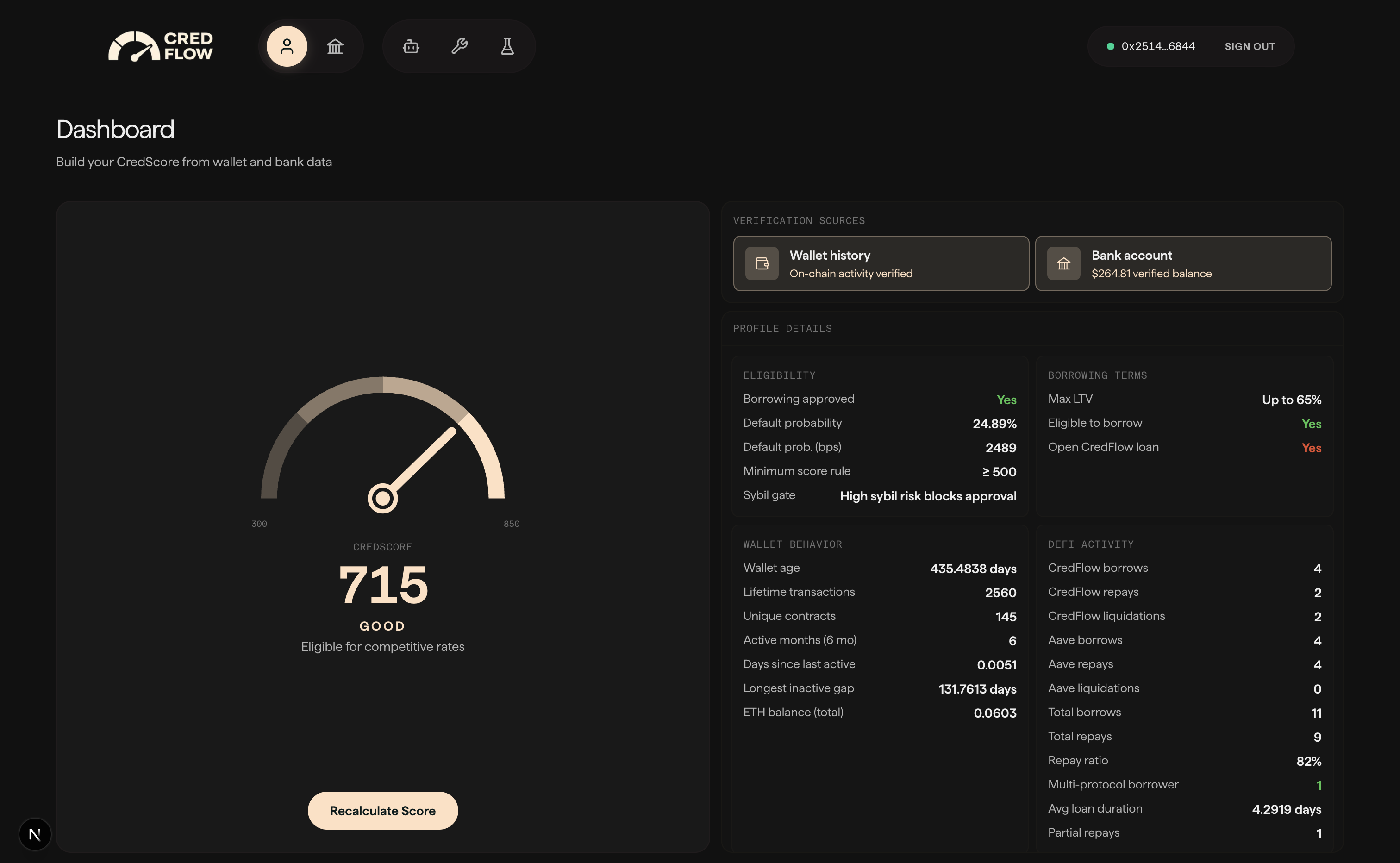

After scoring in UI (YourAccountTab → Build Score → Complete), underwriter commits on-chain separately from ML API.

SBT is soulbound on hub. Spokes read mirrored state via CredFlowOApp + LayerZero.

### Interest Rate and Tier Summary

Score range 300–850. Approval ≥ 500. Borderline Groq 480–520. Default LZ spoke score 310.

Max LTV by score: 500→40%, 580→50%, 620→60%, 680→65%, 720→75%, 750→85%
Health warning LTV: 75%. Liquidation LTV: 85%. Liquidation penalty: 5%. Grace period: 48h (agent in-memory).

Interest: borrowedAmount * interestRate * elapsedSeconds / (365 days * 10000)

---

## 4. Borrowing Logic

Loans tab → PurchaseLoanPanel → POST /api/loans/borrow. Server wallet signs via frontend/src/lib/loan-server.ts.

Display score from Supabase (same as dashboard); eligibility from on-chain registry per chain.

Before borrow: read score, blacklist, active loan on Robinhood + Arbitrum + Base. Hub loan locks other chains via LayerZero until repaid.

Collateral: collateralValueUSD = borrowAmount * 10000 / maxLTV; collateralWei from ETH/USD oracle.

Hub oracle: ChainlinkOracle + MockChainlinkFeed. Spokes: ChainlinkMirrorFeed (mainnet ETH/USD mirrored).

### Hub vs Spoke Borrow

Shared: WETH.deposit, approve, requestLoan(borrowAmount, weth, collateral, durationDays).

Hub CredFlowLending: requires SBT profile, checks loanActive/defaultCount, borrows USDG, setLoanActive on SBT, triggers crosschain_sync.

Spoke CredFlowSpokeLending: reads CredFlowOApp getScore/isLoanActive/isBlacklisted, borrows USDC, no SBT mutation, no agent on borrow.

### Post-Borrow LayerZero Sync (Hub Only)

triggerSyncLoanCreated → POST /agents/sync-loan event=created → sync_wallet_loan_active:
verify hub loan → read SBT score → broadcastScore + broadcastLoanActive to 40231 and 40245 → pay LZ fees → log tx hashes.

Spoke _lzReceive sets loanActiveMirror=true → spoke borrow blocked until MSG_REPAID.

Underwriter does NOT run on borrow.

---

## 5. Repayment Logic

RepayLoanPanel → POST /api/loans/repay → repayLoan() → runPostRepayPipeline().

On-chain repay: verify borrower/active → interest + principal → return WETH collateral → loan inactive → hub: setLoanRepaid on SBT → recordRepayment → LoanRepaid event.

### Post-Repay Pipeline (Hub)

1. Rescore (POST /score, floor_cred_score prevents score drop punishment)
2. Underwriter rescore=true → updateScore on SBT
3. crosschain_sync → broadcastScore + broadcastRepaid to both spokes
4. Fallback: triggerClearSpokeLoanActive if combined sync fails

### LayerZero Unlock

MSG_REPAID sets loanActiveMirror=false on spokes. If LZ lags: repaid-only broadcast fallback, POST /api/loans/clear-lz-lock for manual recovery.

---

## 6. Scenario: Price Goes Down

portfolio_monitor every 300s on all chains. ETH drop → LTV rises → Groq escalation → health warning at 75% LTV → liquidation at 85% LTV.

LTV_bps = (borrowedAmount + interest) * 10000 / collateralValueUSD

Liquidation agent: liquidate → graph analysis → blacklistLinkedWallets → broadcastDefault (MSG_DEFAULT) → spoke defaultBlacklist=true, spokeScores=310.

Borrower cannot borrow again (defaultCount > 0 on hub, blacklisted on spokes).

---

## 7. Scenario: Default and Overdue Loans

Contracts store dueTime but do NOT enforce it in liquidate/repay. Agents enforce calendar default.

Overdue flow: portfolio_monitor detects dueTime passed → start_grace 48h (agents/state.py, in-memory) → if no repay after 48h → liquidation_agent force_grace=True → ensure_liquidatable (testnet oracle crash) → liquidate → graph + blacklist → broadcastDefault.

During grace borrower can still repayLoan() → normal post-repay pipeline clears grace.

---

## 8. LayerZero Cross-Chain Messaging

CredScore issued once on Robinhood (SBT + underwriter), mirrored to Arbitrum/Base via LayerZero. One identity, synchronized state.

Why: prevents stale/fabricated spoke scores and double-borrows across chains.

Robinhood EID 40451 (official LZ V2). Peers: Arbitrum 40231, Base 40245.

### Message Types

- MSG_SCORE_UPDATE (1) → spokeScores[wallet] = score
- MSG_LOAN_ACTIVE (2) → loanActiveMirror[wallet] = true
- MSG_DEFAULT (3) → defaultBlacklist=true, spokeScores=310, loanActiveMirror=false
- MSG_REPAID (4) → loanActiveMirror=false

Spoke lending checks getScore, isBlacklisted, isLoanActive before USDC borrow.

Direction: Robinhood → Arbitrum/Base only. Credit mutations at SBT; other chains are synchronized replicas.

### Crosschain Sync Agent as Broadcaster

Only AGENT_PRIVATE_KEY with AGENT_ROLE calls hub CredFlowOApp broadcasts.
Files: agents/crosschain_sync.py, agents/sync_service.py, agents/base.py, frontend/src/lib/agent-client.ts

Per-spoke: one EID per tx (four txs for full hub-borrow sync).

Liquidation calls hub.broadcast_default directly per wallet.

### Options, Fees, Peers

Non-empty LZ options required (200k gas default).
Fee quoting: scripts/lz-quote-sync.js, lz-quote-debug.js
Peer setup: npm run lz:set-peers (hub), scripts/set-peer-spoke.js (spokes), npm run lz:status

Robinhood DVNs: LayerZero Labs, Nethermind, Horizen, Paxos (layerzero/config.json)

### Delivery Latency and Stale Locks

LZ is async. UI lock kinds: none, hub_mirror (hub loan blocks all spokes), lz_clear_pending (repaid but spoke mirror lagging).

Fallback: triggerClearSpokeLoanActive, POST /api/loans/clear-lz-lock

Manual scripts: scripts/lz-broadcast-score.js, lz-broadcast-loan-active.js

### Source of Truth

Authoritative: CredScoreSBT on hub (score, loanActive, blacklist)
Spoke copies: CredFlowOApp mappings via LZ messages
If LZ diverges: UI uses hub loan as hard lock (hub_mirror)

Lifecycle LZ triggers summary:
- Score/mint/rescore → MSG_SCORE_UPDATE
- Hub borrow → MSG_SCORE_UPDATE + MSG_LOAN_ACTIVE
- Spoke borrow → no LZ
- Hub repay → MSG_SCORE_UPDATE + MSG_REPAID
- Liquidation → MSG_DEFAULT per defaulter + linked wallets

---

## 9. Contracts Overview (Summary)

- CredScoreSBT.sol — soulbound credit profile on hub; score, sub-scores, loan state, SHAP CID, blacklist
- CredScoreEngine.sol — ML default prob + Reclaim balance on-chain formula → mint/update SBT
- CredFlowLending.sol — hub USDG lending; requestLoan, repayLoan, liquidate, emitHealthWarning, LTV/rate tiers
- CredFlowSpokeLending.sol — USDC lending; reads CredFlowOApp as credit registry; rejects if cross-chain loan active
- CredFlowLP.sol — liquidity pool; utilization for rate optimizer
- CredFlowOApp.sol — LZ OApp; hub broadcasts, spokes receive and mirror (ICredFlowCreditRegistry)
- ChainlinkOracle.sol — hub WETH/USD pricing
- ChainlinkMirrorFeed.sol — spoke mainnet ETH/USD mirror (scripts/sync-spoke-oracle.js)
- ICredFlowCreditRegistry.sol — getScore, isBlacklisted, isLoanActive interface for spoke lending

---

## 10. Agent-Contract Interaction Matrix (Summary)

Write access:
- underwriter → CredScoreEngine.mintScore, CredScoreSBT mintSBT/updateScore (mint/rescore)
- crosschain_sync → hub CredFlowOApp broadcastScore/LoanActive/Repaid/Default (LZ)
- portfolio_monitor → read LTV/loans; emitHealthWarning at 75% LTV
- liquidation_agent → liquidate; blacklistLinkedWallets; broadcastDefault via hub
- rate_optimizer → read CredFlowLP; setBaseRate on lending

User-signed (no agent): spoke requestLoan/repayLoan; hub requestLoan/repayLoan (borrow triggers sync agent after tx).

Contract-to-contract: CredFlowLending ↔ CredScoreSBT (setLoanActive/Repaid); Engine → SBT on mint.

---

## 11. Conclusion

CredFlow is credit depth + automation:
- 37-feature XGBoost + R-GCN sybil + optional Reclaim bank proof
- Portable CredScore SBT on Robinhood testnet
- Undercollateralized loans on Robinhood (USDG), Arbitrum (USDC), Base (USDC)
- Five agents: underwrite, sync, monitor, liquidate, optimize rates
- LayerZero V2 keeps all markets aligned on one underwritten identity

Live on testnet. Production hardening: calendar-overdue in contracts, persistent grace state, mainnet oracles, wallet-connect UX alongside demo server wallet.

---

## Key Environment Variables (Reference)

- FRONTEND_PRIVATE_KEY — server wallet (frontend/.env.local)
- AGENT_PRIVATE_KEY — all five agents + LZ broadcasts
- ALCHEMY_API_KEY — wallet indexing
- RECLAIM_ENABLED, RECLAIM_APP_ID, RECLAIM_APP_SECRET, RECLAIM_PROVIDER_ID, RECLAIM_CALLBACK_URL
- USE_MOCK_DATA=1, USE_MOCK_RECLAIM=1 — offline dev
- AGENT_MONITOR_INTERVAL_SEC — default 300
- LIQUIDATION_GRACE_HOURS — default 48
- GRAPH_ANALYSIS_MAX_WALLETS / LIQUIDATION_MAX_LINKED_WALLETS — sybil graph caps

---

## Key npm Scripts (Reference)

- npm run ml:serve — ML API + ngrok for Reclaim callbacks
- npm run ml:train — train XGBoost model
- npm run ml:sybil-train — train R-GCN sybil model
- npm run agents:serve — agent scheduler
- npm run lz:set-peers — wire LayerZero peers
- npm run lz:status — verify LZ pathway

We had ideated, built and deployed the entire project from scratch during the duration of the hackathon, we believe so much in the product's potential to provide immense value by accurately calculating credit scores and providing undercollateralized loans. We will also be deploying credflow to mainnet soon after audits and enhancements and making sure the product is production ready.

We are actively looking for funding and technical support to further build credflow!
