Arbitrum No-Code Agent Builder

Introduction

Arbitrum No-Code Agent Builder is a no-code platform that enables users to build, deploy, and interact with AI-powered blockchain agents on the Arbitrum Sepolia testnet. The platform provides a visual workflow builder interface where users can create sophisticated blockchain automation workflows without writing code.

The platform supports 10 blockchain tools including token transfers, swaps, token/NFT deployment, DAO creation, airdrops, yield calculations, price fetching, and wallet analytics. All tools interact with smart contracts deployed on the Arbitrum Sepolia testnet. The contracts are implemented using Arbitrum Stylus, allowing them to be written in Rust and compiled to WebAssembly for enhanced performance and gas efficiency.

Resources

• Pitch Deck : View Here

• Live Demo : View Here

Deployed Tool Contracts

All smart contracts are deployed on the Arbitrum Sepolia testnet using Arbitrum Stylus (Rust/WASM). View them on the Explorer:

Note: All contracts are implemented in Rust using the Arbitrum Stylus SDK (v0.6.0) and compiled to WebAssembly. They are cached in ArbOS for cheaper execution costs. See deployment-config.json for complete deployment details.

How to Use

Getting started with Arbitrum No-Code Agent Builder is simple! Follow these steps:

1. Visit https://stylus-agent-builder.vercel.app

2. Get Started with just a Google sign in.

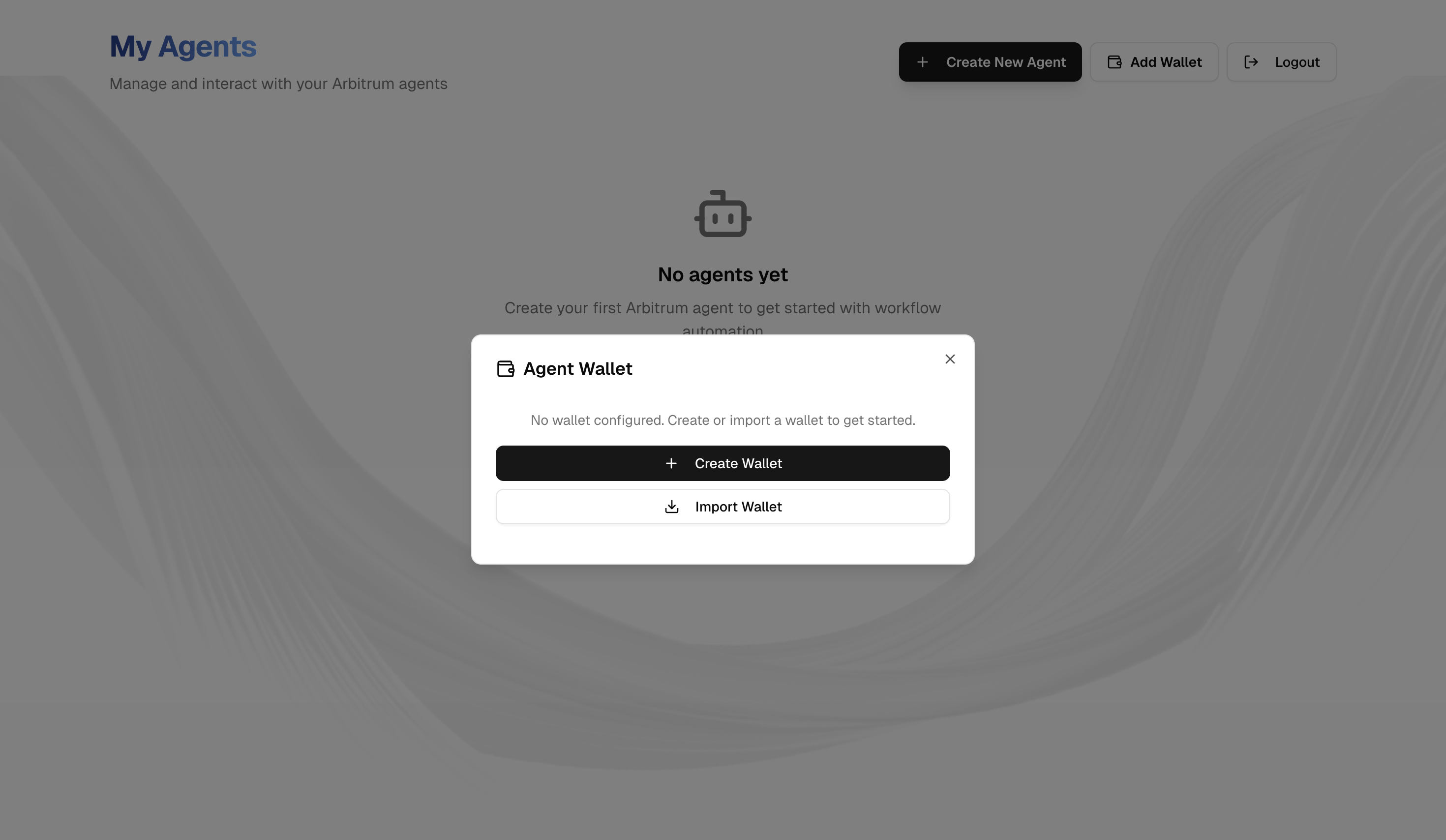

3. Create an Agent Wallet or Import your own wallet from private key (ensure you have ETH on Arbitrum Sepolia).

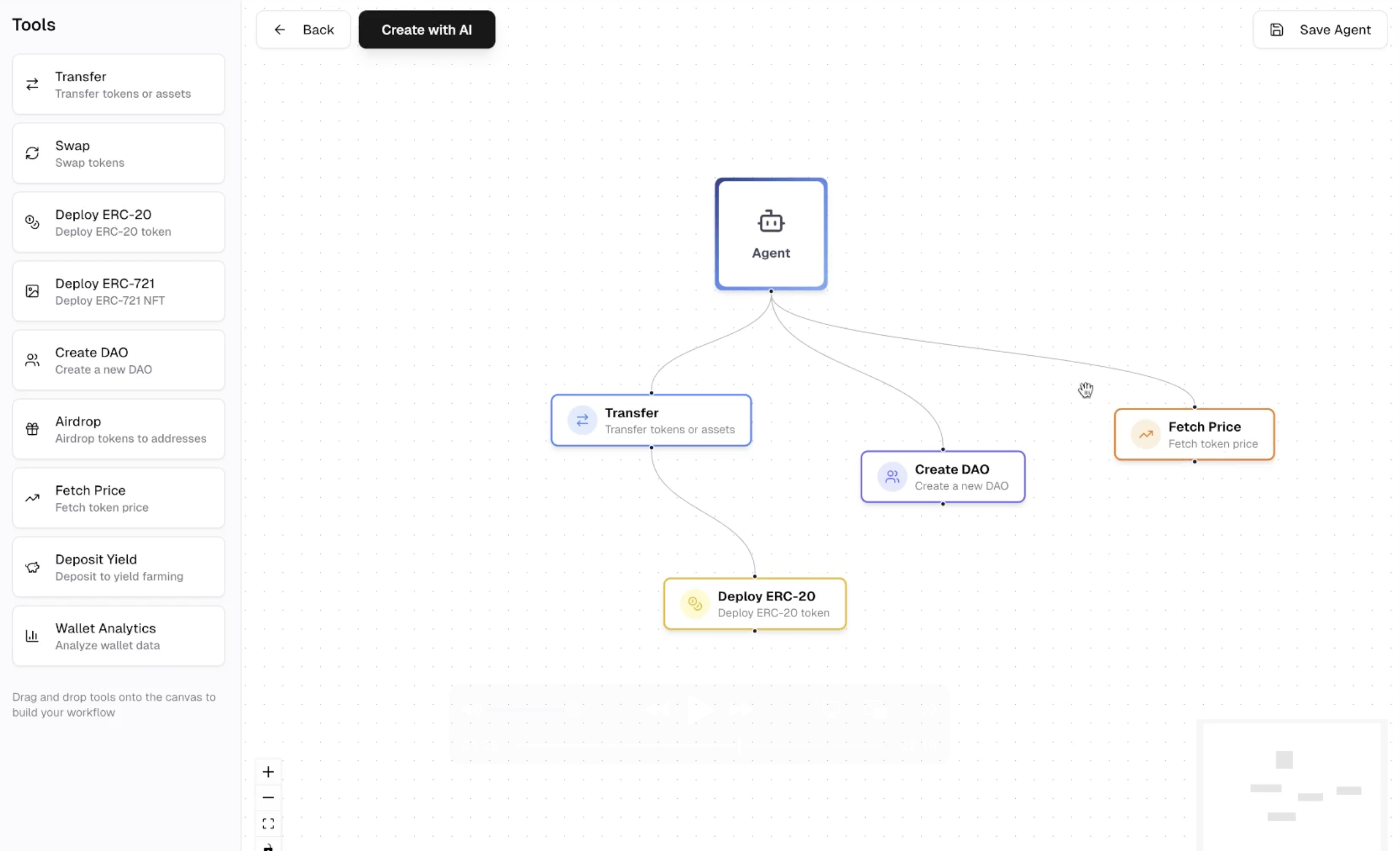

4. Create Your First Agent by just drag-dropping the tools you need!

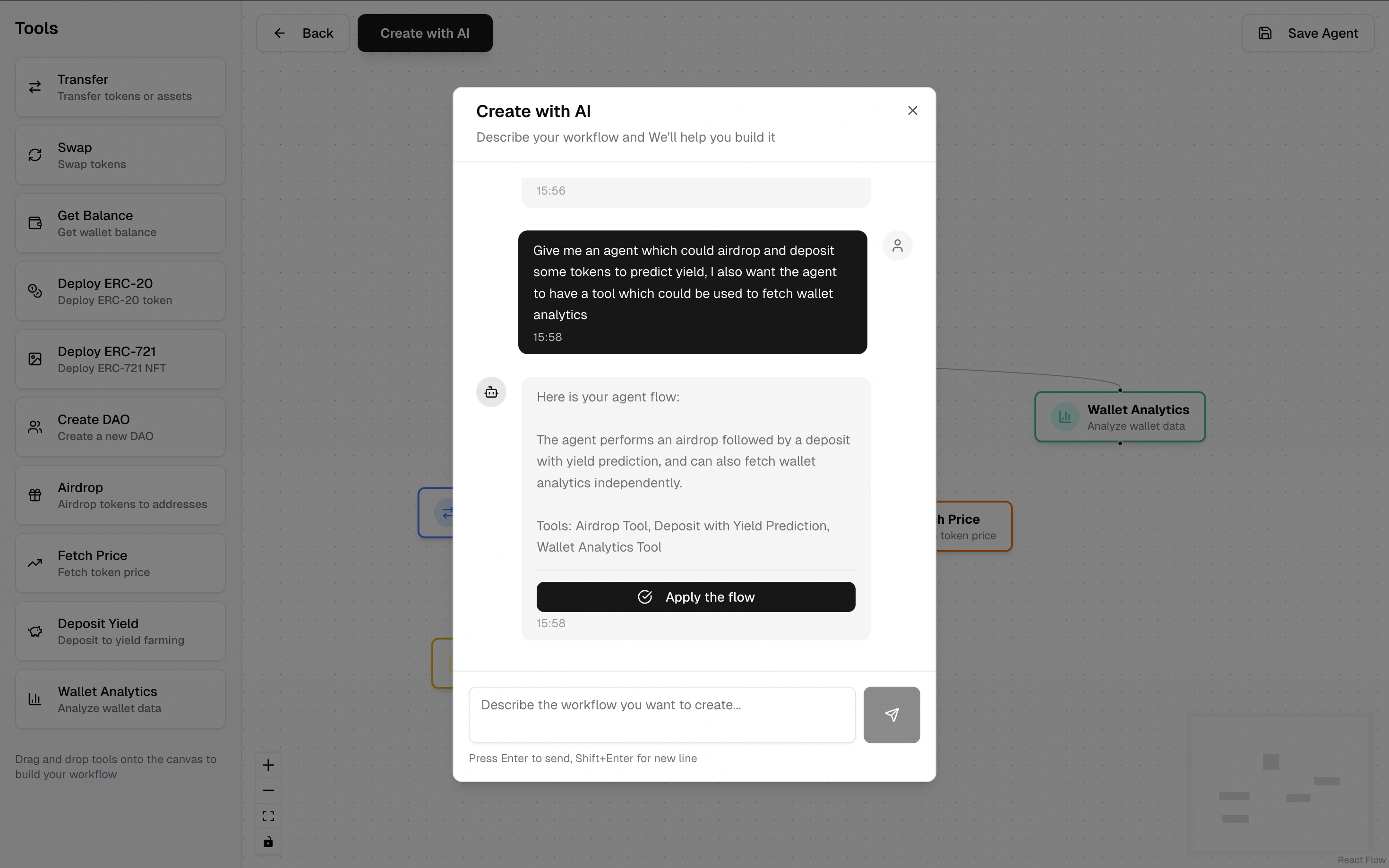

5. You Can Also AI Generate Your Agent! just ask our AI to generate your agent with the right tools.

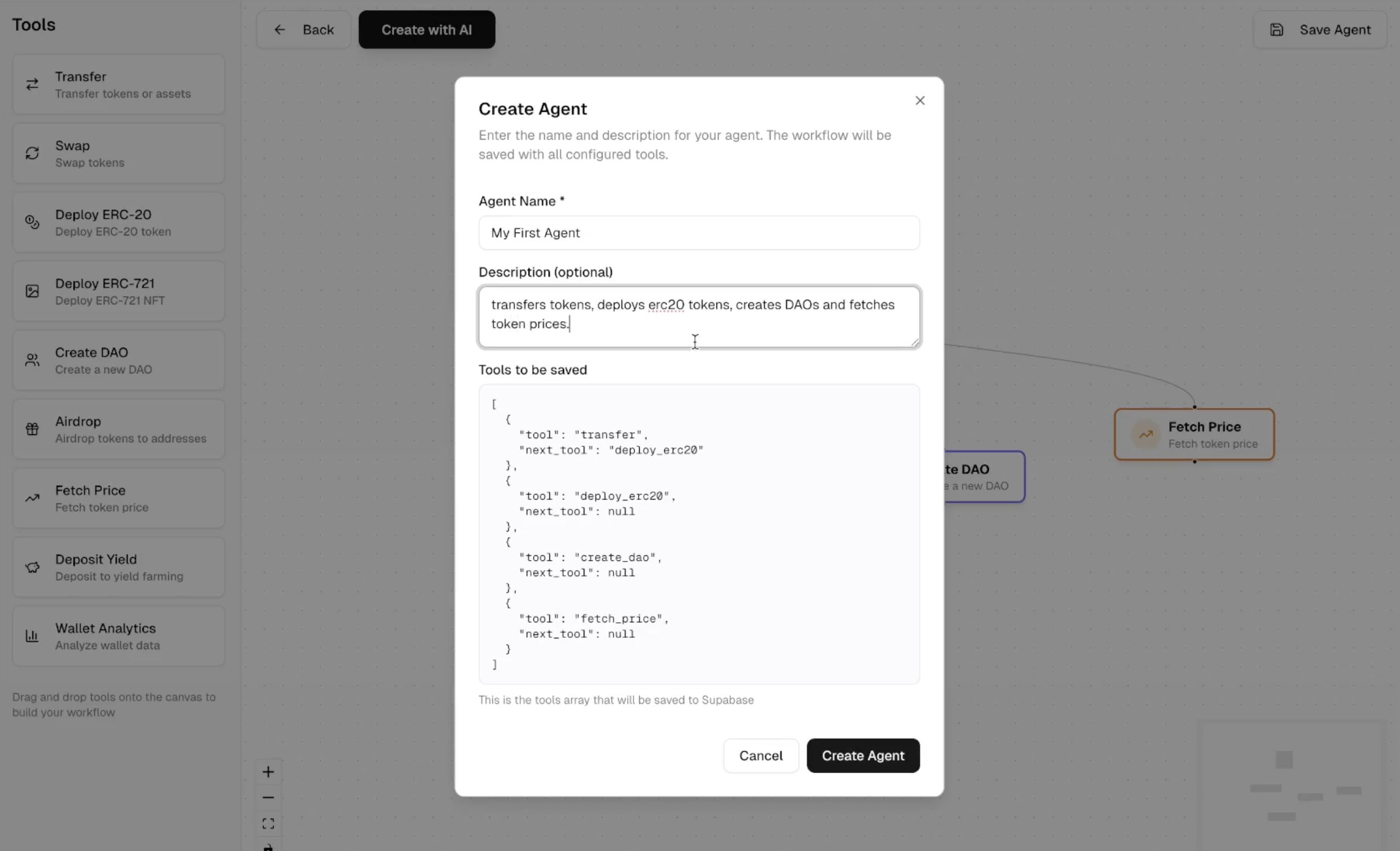

6. Save your agent.

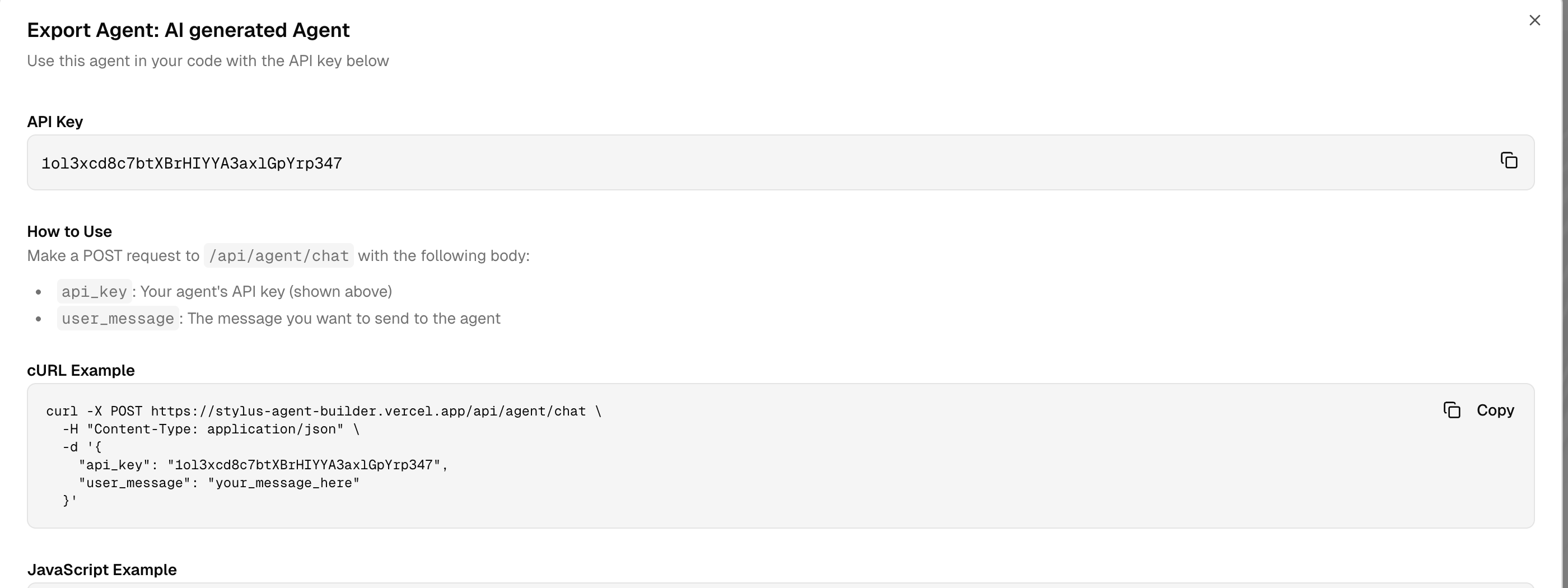

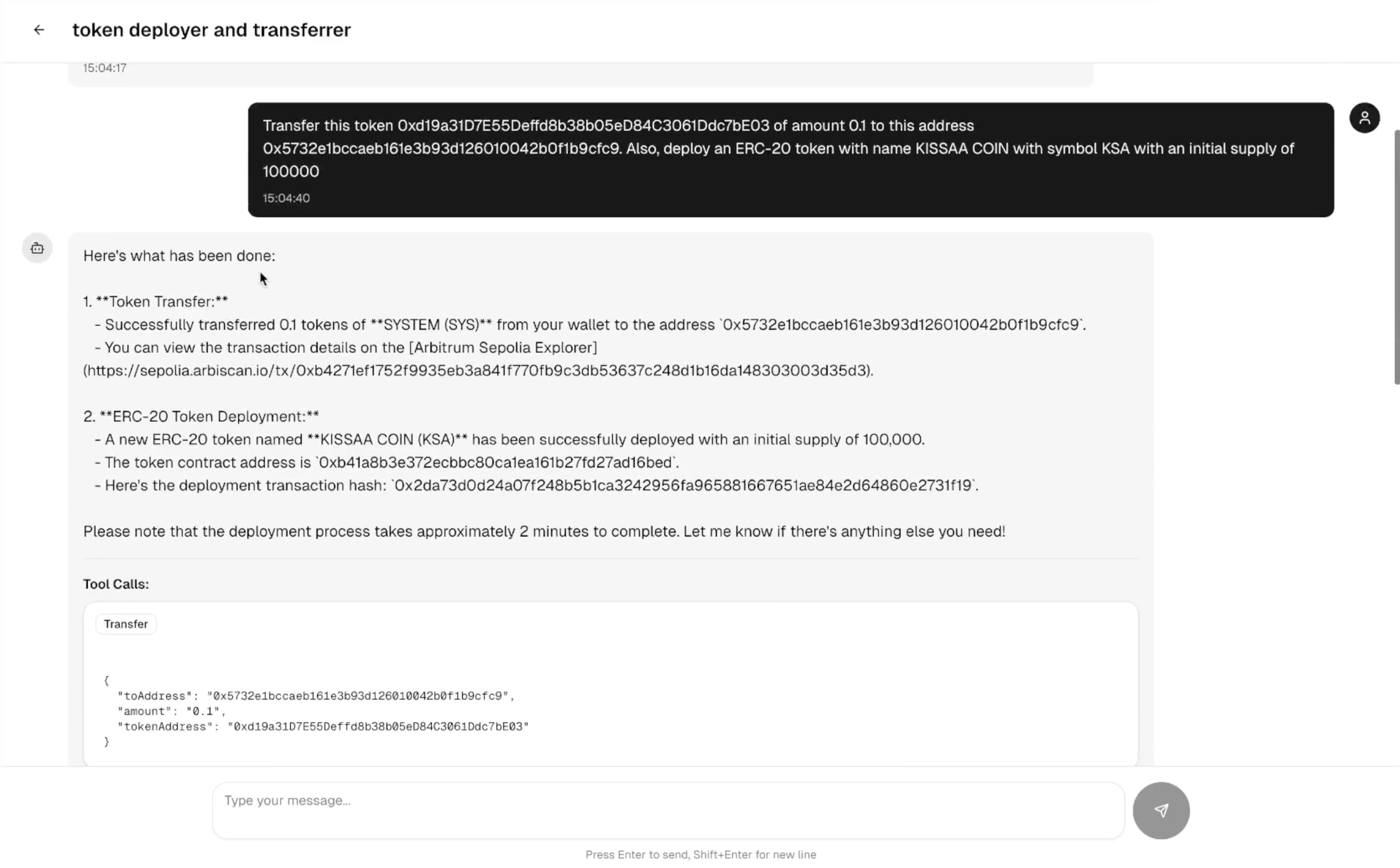

7. Interact with it in the UI or with curl requests by using your api key.



That's it! You've created your first Arbitrum agent without any programming knowledge, as simple as that!

Table of Contents

1. Platform Architecture

2. System Components

   • Frontend

   • Backend API

   • Agent Service

   • Workflow Builder

3. Blockchain Tools

   • Transfer Tool

   • Swap Tool

   • Balance Fetch Tool

   • ERC-20 Token Deployment

   • ERC-721 NFT Collection Deployment

   • DAO Creation

   • Airdrop Tool

   • Token Price Fetching

   • Yield Calculator

   • Wallet Analytics

4. Smart Contract Implementations

   • TokenFactory & MyToken

   • NFTFactory & MyNFT

   • DAOFactory & DAO

   • Airdrop Contract

   • YieldCalculator Contract

System Components

Frontend

Technology Stack:

• Next.js 15 (React 19)

• TypeScript

• React Flow (visual workflow builder)

• Tailwind CSS

• Radix UI components

Key Features:

• Visual drag-and-drop workflow builder

• Node-based tool configuration

• Real-time AI chat interface

• Workflow saving and loading

• Agent management dashboard

Main Components:

• workflow-builder.tsx - Main workflow canvas with React Flow

• node-library.tsx - Tool palette for dragging tools onto canvas

• node-config-panel.tsx - Configuration panel for selected nodes

• ai-chat-modal.tsx - Chat interface for interacting with agents

• Custom node types: Input, Output, Process, Conditional, Code

Backend API

Technology Stack:

• Express.js

• ethers.js v6

• Solidity compiler (solc)

• Axios for HTTP requests

• OpenAI SDK

Network:

• Arbitrum Sepolia RPC: https://sepolia-rollup.arbitrum.io/rpc

• Explorer: https://sepolia.arbiscan.io

• Chain ID: 421614

Key Responsibilities:

• Blockchain interaction via ethers.js

• Smart contract deployment and interaction

• Token/NFT/DAO creation via factory contracts

• IPFS metadata upload for NFTs

• Token price fetching via OpenAI search

• Wallet balance queries via Arbitrum APIs

Port: 3000 (default)

Agent Service

Technology Stack:

• FastAPI

• OpenAI GPT-4o

• Python requests library

Key Features:

• Dynamic tool configuration based on workflow

• Sequential tool execution support

• Function calling with OpenAI

• Context-aware tool selection

• Private key management for transactions

Endpoints:

• POST /agent/chat - Main chat endpoint with tool execution

• GET /tools - List all available tools

• GET /health - Health check

Port: 8000 (default)

Workflow Builder

Technology Stack:

• FastAPI

• OpenAI GPT-4o-2024-08-06 (structured outputs)

Key Features:

• Natural language to workflow conversion

• Structured JSON output with tool connections

• Sequential execution detection

• Tool type validation

Endpoints:

• POST /create-workflow - Convert natural language to workflow

• GET /available-tools - List available tools

• GET /health - Health check

Port: 8000 (default, different from agent service in production)

Blockchain Tools

1. Transfer Tool

Endpoint: POST /transfer

Description: Transfers native ETH tokens or ERC-20 tokens from one wallet to another on Arbitrum Sepolia. Supports both native token transfers and ERC-20 token transfers.

Request Body:

{
  "privateKey": "0x...",
  "toAddress": "0x...",
  "amount": "0.01",
  "tokenAddress": "0x..." // Optional: if provided, transfers ERC-20 tokens
}

Implementation Details:

For Native Token Transfer (ETH):

1. Validates wallet balance

2. Creates transaction with ethers.parseEther(amount)

3. Sends transaction via wallet.sendTransaction()

4. Waits for confirmation

5. Returns transaction hash and explorer link

For ERC-20 Token Transfer:

1. Connects to token contract using ERC-20 ABI

2. Fetches token decimals

3. Parses amount with proper decimals: ethers.parseUnits(amount, decimals)

4. Checks token balance using balanceOf()

5. Calls transfer() function on token contract

6. Waits for transaction confirmation

7. Returns token info, transaction hash, and explorer link

Response:

{
  "success": true,
  "type": "native" | "ERC20",
  "transactionHash": "0x...",
  "from": "0x...",
  "to": "0x...",
  "amount": "0.01",
  "blockNumber": 217915266,
  "gasUsed": "421000",
  "explorerUrl": "https://sepolia.arbiscan.io/tx/..."
}

Contract Interaction:

• Uses standard ERC-20 interface: transfer(address to, uint256 amount)

• No smart contract deployment needed (uses existing token contracts)

Example:

• See test script: erc20-token/test.js for transfer examples

2. Swap Tool

Endpoint: POST /swap

Description: Swaps one ERC-20 token for another using Uniswap V2/V3 compatible router on Arbitrum Sepolia.

Request Body:

{
  "privateKey": "0x...",
  "tokenIn": "0x...",
  "tokenOut": "0x...",
  "amountIn": "10",
  "slippageTolerance": 3,
  "poolFee": 500,
  "routerType": "uniswap_v3"
}

Implementation Details:

1. Token Approval:

   • Checks current allowance

   • If insufficient, calls approve() on tokenIn contract

   • Approves swap router address: 0x6aac14f090a35eea150705f72d90e4cdc4a49b2c

2. Amount Calculation:

   • Parses input amount with token decimals

   • Calculates minimum output: amountIn * (100 - slippageTolerance) / 100

   • Parses output amount with output token decimals

3. Swap Execution:

   • Uniswap V3: Uses exactInputSingle() with pool fee

   • Uniswap V2: Uses swapExactTokensForTokens() with deadline

   • Estimates gas and adds 50% buffer

   • Executes swap transaction

4. Transaction Confirmation:

   • Waits for transaction receipt

   • Returns approval and swap transaction hashes

Response:

{
  "success": true,
  "wallet": "0x...",
  "tokenIn": "0x...",
  "tokenOut": "0x...",
  "amountIn": "10",
  "slippageTolerance": 3,
  "routerType": "uniswap_v3",
  "approveTxHash": "0x...",
  "swapTxHash": "0x...",
  "blockNumber": 218000000,
  "gasUsed": "150000",
  "explorerUrl": "https://sepolia.arbiscan.io/tx/..."
}

Contract Interaction:

• Swap Router: Uniswap V2/V3 compatible router on Arbitrum Sepolia

• Uniswap V3 Router ABI: exactInputSingle((address,address,uint24,address,uint256,uint256,uint160))

• Uniswap V2 Router ABI: swapExactTokensForTokens(uint256,uint256,address[],address,uint256)

3. Balance Fetch Tool

Endpoint: GET /balance/:address or GET /balance/:address/:token

Description: Fetches native ETH balance or ERC-20 token balance for a wallet address on Arbitrum Sepolia.

Implementation Details:

Native Balance:

1. Uses provider.getBalance(address)

2. Formats using ethers.formatEther()

3. Returns balance in ETH and wei

ERC-20 Balance:

1. Connects to token contract

2. Calls balanceOf(address)

3. Fetches decimals(), symbol(), name()

4. Formats balance using ethers.formatUnits(balance, decimals)

5. Returns token info and balance

Response:

{
  "address": "0x...",
  "token": "0x...",
  "name": "Token Name",
  "symbol": "TKN",
  "balance": "1000.0",
  "balanceWei": "1000000000000000000000",
  "decimals": 18
}

Contract Interaction:

• Standard ERC-20 interface: balanceOf(address), decimals(), symbol(), name()

4. ERC-20 Token Deployment

Endpoint: POST /deploy-token

Description: Deploys a new ERC-20 token using the Stylus-based TokenFactory contract (registry pattern). The token contract itself is deployed separately and then registered with the factory. Creates a customizable token with minting, burning, and pause capabilities.

Request Body:

{
  "privateKey": "0x...",
  "name": "SuperCoin",
  "symbol": "SUC",
  "initialSupply": "100000"
}

Implementation Details:

1. Token Deployment:

   • Deploy ERC-20 token contract using cargo-stylus CLI

   • Token contract address: 0x473200e631dc83fdf6a8c48eb9e44414a90cec50 (example)

   • Initialize token with init(name, symbol, initialSupply)

2. Factory Registration:

   • Factory Address: 0xed088fd93517b0d0c3a3e4d2e2c419fb58570556

   • Calls registerToken(tokenAddress, name, symbol, initialSupply)

   • Factory stores token metadata and tracks creator

   • Estimates gas and adds 20% buffer

   • Sends transaction

3. Event Parsing:

   • Parses TokenCreated event from transaction receipt

   • Extracts new token address from event

4. Token Transfer:

   • Checks if creator is token owner

   • If owner, mints tokens to creator using mint() function

   • This increases total supply but ensures creator has tokens

5. Token Info Retrieval:

   • Calls factory getTokenInfo(tokenAddress)

   • Returns token metadata, creator, owner, supply info

Response:

{
  "success": true,
  "message": "Token created successfully via TokenFactory",
  "contractAddress": "0x...",
  "tokenInfo": {
    "name": "SuperCoin",
    "symbol": "SUC",
    "initialSupply": "100000",
    "currentSupply": "200000.0",
    "creator": "0x...",
    "owner": "0x...",
    "deployedAt": "2025-11-04T09:53:46.000Z"
  },
  "transactionHash": "0x...",
  "explorerUrl": "https://sepolia.arbiscan.io/tx/..."
}

Contract Interaction Diagram:

Implementation:

• Contract Code: erc20-token/src/lib.rs

• Factory Code: token-factory/src/lib.rs

• Test Script: erc20-token/test.js - All 14 tests passing ✅

• Deployed Token: 0x473200e631dc83fdf6a8c48eb9e44414a90cec50

5. ERC-721 NFT Collection Deployment

Endpoint: POST /create-nft-collection

Description: Creates a new ERC-721 NFT collection using the Stylus-based NFTFactory contract (registry pattern). The NFT collection contract is deployed separately and then registered with the factory. Supports automatic IPFS metadata upload and mints the first NFT.

Request Body:

{
  "privateKey": "0x...",
  "name": "Bat Collection",
  "symbol": "BAC"
}

Implementation Details:

1. Metadata Generation:

   • Creates JSON metadata for first NFT

   • Includes name, description, image, attributes

   • Uses placeholder image initially

2. IPFS Upload:

   • Uploads metadata to Pinata IPFS

   • Requires PINATA_API_KEY and PINATA_SECRET_KEY

   • Returns IPFS hash: ipfs://QmXxx...

3. Base URI Creation:

   • Creates IPFS directory structure

   • Uploads base directory metadata

   • Returns baseURI: ipfs://QmXxx/

4. Collection Deployment:

   • Deploy ERC-721 NFT contract using cargo-stylus CLI

   • NFT contract address: 0x74e3bace8102f7d2bb5741ac301e6b062d5224b9 (example)

   • Initialize collection with init(name, symbol, baseURI)

5. Factory Registration:

   • Factory Address: 0xbeaf33e277499dbb7982061d261c6c286494855e

   • Calls registerCollection(collectionAddress, name, symbol, baseURI)

   • Factory stores collection metadata and tracks creator

   • Parses CollectionCreated event

6. First NFT Minting:

   • Connects to NFT collection contract

   • Calls mintWithURI(creator, metadataURI)

   • Returns token ID and metadata info

Response:

{
  "success": true,
  "message": "NFT collection created and first NFT minted successfully",
  "collection": {
    "address": "0x...",
    "name": "Bat Collection",
    "symbol": "BAC",
    "baseURI": "ipfs://QmXxx/"
  },
  "firstNFT": {
    "tokenId": "1",
    "owner": "0x...",
    "metadataURI": "ipfs://QmXxx...",
    "metadata": {...}
  },
  "transactions": {
    "collectionCreation": "0x...",
    "minting": "0x..."
  }
}

Contract Interaction Diagram:

Implementation:

• Contract Code: erc721-nft/src/lib.rs

• Factory Code: nft-factory/src/lib.rs

• Test Script: erc721-nft/test.js - All 6 tests passing ✅

• Deployed NFT: 0x74e3bace8102f7d2bb5741ac301e6b062d5224b9

6. DAO Creation

Endpoint: POST /create-dao

Description: Creates a new Decentralized Autonomous Organization (DAO) using the Stylus-based DAOFactory contract (registry pattern). The DAO contract is deployed separately and then registered with the factory. Supports customizable voting period and quorum percentage.

Request Body:

{
  "privateKey": "0x...",
  "name": "My COOL DAO",
  "votingPeriod": "604800",
  "quorumPercentage": "51"
}

Implementation Details:

1. Validation:

   • Validates voting period > 0 (in seconds)

   • Validates quorum percentage (0-100)

2. DAO Deployment:

   • Deploy DAO contract using cargo-stylus CLI

   • DAO contract address: 0x95d7bc3f2f8172298c2487dfeca23d86b09572f5 (example)

   • Initialize DAO with init(name, creator, votingPeriod, quorumPercentage)

   • Creator is automatically added as first member with voting power 1

3. Factory Registration:

   • Factory Address: 0xf4242a5bebdd12abc7d01ab9fd3f7473b3295d46

   • Calls registerDao(daoAddress, name, votingPeriod, quorumPercentage)

   • Factory stores DAO metadata and tracks creator

4. DAO Info Retrieval:

   • Connects to created DAO contract

   • Fetches: name, owner, memberCount, votingPeriod, quorumPercentage, proposalCount, totalVotingPower

Response:

{
  "success": true,
  "message": "DAO created successfully via DAOFactory",
  "dao": {
    "address": "0x...",
    "name": "My COOL DAO",
    "owner": "0x...",
    "memberCount": "1",
    "votingPeriod": {
      "seconds": "604800",
      "days": "7.00"
    },
    "quorumPercentage": "51",
    "proposalCount": "0",
    "totalVotingPower": "1"
  },
  "transactionHash": "0x...",
  "explorerUrl": "https://sepolia.arbiscan.io/tx/..."
}

Contract Interaction Diagram:

Implementation:

• Contract Code: dao/src/lib.rs

• Factory Code: dao-factory/src/lib.rs

• Test Script: dao/test.js - All 12 tests passing ✅

• Deployed DAO: 0x95d7bc3f2f8172298c2487dfeca23d86b09572f5

7. Airdrop Tool

Endpoint: POST /airdrop

Description: Batch transfers native ETH tokens to multiple addresses in a single transaction using the Stylus-based Airdrop contract on Arbitrum Sepolia.

Request Body:

{
  "privateKey": "0x...",
  "recipients": ["0x...", "0x...", "0x..."],
  "amount": "0.01"
}

Implementation Details:

1. Validation:

   • Validates recipients array is non-empty

   • Validates all addresses are valid Ethereum addresses

   • Validates amount > 0

2. Balance Check:

   • Calculates total amount: amount * recipients.length

   • Checks wallet balance >= total amount

3. Airdrop Execution:

   • Contract Address: 0x6239a115e23a11033930c1892eb6b67649c12f18

   • Calls airdrop(recipients, amountPerRecipient) (payable function)

   • Sends total amount as msg.value

   • Contract distributes ETH to all recipients

4. Event Parsing:

   • Parses AirdropExecuted event

   • Extracts executor, recipients, total amount, timestamp

Response:

{
  "success": true,
  "message": "Airdrop executed successfully",
  "airdrop": {
    "from": "0x...",
    "recipientsCount": 3,
    "recipients": ["0x...", "0x...", "0x..."],
    "amountPerRecipient": "0.01",
    "totalAmount": "0.03"
  },
  "transaction": {
    "hash": "0x...",
    "blockNumber": 218174401,
    "gasUsed": "133488"
  },
  "event": {
    "executor": "0x...",
    "totalAmount": "30000000000000000",
    "timestamp": "2025-11-02T11:31:42.000Z"
  }
}

Contract Interaction Diagram:

Implementation:

• Contract Code: airdrop/src/lib.rs

• Test Script: airdrop/test.js - All 5 tests passing ✅

• Deployed Contract: 0x6239a115e23a11033930c1892eb6b67649c12f18

8. Token Price Fetching

Endpoint: POST /token-price

Description: Fetches current cryptocurrency prices with natural language queries.

Request Body:

{
  "query": "bitcoin current price"
}

Implementation Details:

1. Query Processing:

   • System prompt instructs model to:

     • Parse natural language queries

     • Identify cryptocurrency symbols

     • Search for current prices

     • Return structured price information

Response:

{
  "success": true,
  "query": "bitcoin current price",
  "response": "As of November 2, 2025, Bitcoin (BTC) is trading at approximately $110,957 USD...",
  "timestamp": "2025-11-02T12:24:30.862Z",
}

9. Yield Calculator

Endpoint: POST /yield

Description: Creates a deposit with yield prediction using any ERC-20 token. Calculates yield based on APY and time period.

Request Body:

{
  "privateKey": "0x...",
  "tokenAddress": "0x...",
  "depositAmount": "0.1",
  "apyPercent": 5
}

Implementation Details:

1. Token Approval:

   • Checks token balance

   • Checks allowance for YieldCalculator contract

   • Approves if needed: approve(contractAddress, MaxUint256)

2. Deposit Creation:

   • Contract Address: 0x70f749501b44ea186550dfca4e9f87a5d120bb4d

   • Calls createDeposit(tokenAddress, amount, apy)

   • APY converted to basis points: apyPercent * 100

   • Tokens transferred from user to contract via transferFrom

3. Yield Projections:

   • Calculates yield for multiple periods: 7, 30, 60, 90, 180, 365 days

   • Uses formula: amount * (apy / 10000) * (timeInSeconds / 31536000)

   • Returns projections with total value (principal + yield)

Response:

{
  "success": true,
  "message": "Deposit created successfully",
  "deposit": {
    "depositId": "2",
    "tokenAddress": "0x...",
    "tokenName": "SuperCoin",
    "tokenSymbol": "SUC",
    "depositAmount": "0.1",
    "apyPercent": 5,
    "principal": "0.1",
    "currentYield": "0.000000000158548959",
    "totalAmount": "0.100000000158548959",
    "daysPassed": "0.00",
    "active": true
  },
  "projections": [
    {
      "days": 7,
      "yieldAmount": "0.000095890410958904",
      "principal": "0.1",
      "totalValue": "0.100096",
      "tokenSymbol": "SUC"
    },
    ...
  ]
}

Contract Interaction Diagram:

Implementation:

• Contract Code: yield-calculator/src/lib.rs

• Test Script: yield-calculator/test.js - All 14 tests passing ✅

• Deployed Contract: 0x70f749501b44ea186550dfca4e9f87a5d120bb4d

10. Wallet Analytics

Endpoint: POST /api/balance/erc20

Description: Fetches all ERC-20 token balances for a wallet address using Arbitrum APIs.

Request Body:

{
  "address": "0x..."
}

Implementation Details:

1. API Request:

   • Uses Arbitrum Sepolia RPC or compatible APIs

   • Queries token balances via contract calls or indexing services

   • Optional: Bearer token authentication if using third-party APIs

2. Response Processing:

   • Returns all ERC-20 tokens with balances

   • Includes token metadata: name, symbol, decimals, contract address

   • Includes formatted balance and raw balance

Response:

{
  "success": true,
  "address": "0x...",
  "data": {
    "cursor": "...",
    "erc20TokenBalances": [
      {
        "balance": "50000",
        "contract": {
          "address": "0x...",
          "decimals": 18,
          "erc_type": "ERC-20",
          "name": "SOMDER",
          "symbol": "SOM"
        },
        "raw_balance": "50000000000000000000000"
      }
    ],
    "resultCount": 1
  },
  "timestamp": "2025-11-02T12:00:00.000Z"
}

Smart Contract Implementations

All contracts are implemented in Rust using Arbitrum Stylus SDK v0.6.0 and compiled to WebAssembly. They are deployed on Arbitrum Sepolia and cached in ArbOS for cheaper execution costs.

TokenFactory & ERC-20 Token

Location: arbitrum-stylus-contracts/

TokenFactory Contract (Registry Pattern)

Address: 0xed088fd93517b0d0c3a3e4d2e2c419fb58570556

Implementation: token-factory/src/lib.rs

Key Functions:

• registerToken(address tokenAddress, string name, string symbol, uint256 initialSupply) - Registers externally deployed token

• getTotalTokensDeployed() - Returns total count

• getAllDeployedTokens() - Returns all token addresses

• getTokensByCreator(address creator) - Returns tokens created by address

• getTokenInfo(address tokenAddress) - Returns detailed token information (tuple)

Storage:

• deployed_tokens[] - Array of all registered token addresses

• creator_to_tokens - Mapping from creator to their tokens

• token_info - Mapping from token address to TokenInfo struct

Events:

• TokenCreated(address indexed tokenAddress, address indexed creator, string name, string symbol, uint256 initialSupply, uint256 timestamp)

Test Script: token-factory/test.js - ✅ 7/7 tests passing

ERC-20 Token Contract

Address: 0x473200e631dc83fdf6a8c48eb9e44414a90cec50

Implementation: erc20-token/src/lib.rs

Features:

• ERC-20 standard implementation

• Burnable tokens (burn())

• Ownable (owner-only functions)

• Pausable transfers (owner can pause)

• Initialization via init() function

Key Functions:

• init(string name, string symbol, uint256 initialSupply) - Initialize token

• mint(address to, uint256 amount) - Owner can mint new tokens

• burn(uint256 amount) - Anyone can burn their tokens

• pause() / unpause() - Owner can pause transfers

• transfer() / transferFrom() / approve() - Standard ERC-20 functions

Test Script: erc20-token/test.js - ✅ 14/14 tests passing

NFTFactory & ERC-721 NFT

Location: arbitrum-stylus-contracts/

NFTFactory Contract (Registry Pattern)

Address: 0xbeaf33e277499dbb7982061d261c6c286494855e

Implementation: nft-factory/src/lib.rs

Key Functions:

• registerCollection(address collectionAddress, string name, string symbol, string baseURI) - Registers externally deployed collection

• getTotalCollectionsDeployed() - Returns total count

• getAllDeployedCollections() - Returns all collection addresses

• getCollectionsByCreator(address creator) - Returns collections by creator

• getCollectionInfo(address collectionAddress) - Returns collection details (tuple)

Storage:

• deployed_collections[] - Array of all registered collection addresses

• creator_to_collections - Mapping from creator to collections

• collection_info - Mapping from collection to CollectionInfo struct

Events:

• CollectionCreated(address indexed collectionAddress, address indexed creator, string name, string symbol, string baseURI, uint256 timestamp)

Test Script: nft-factory/test.js - ✅ 7/7 tests passing

ERC-721 NFT Contract

Address: 0x74e3bace8102f7d2bb5741ac301e6b062d5224b9

Implementation: erc721-nft/src/lib.rs

Features:

• ERC-721 standard implementation

• Custom token URIs support

• Burnable tokens

• Ownable (owner-only minting)

• Pausable transfers

• Initialization via init() function

Key Functions:

• init(string name, string symbol, string baseURI) - Initialize collection

• mint(address to) - Owner mints NFT with baseURI + tokenId

• mintBatch(address to, uint256 amount) - Batch minting

• setBaseUri(string newBaseUri) - Owner updates base URI

• tokenUri(uint256 tokenId) - Returns token URI

• pause() / unpause() - Owner pauses transfers

• setApprovalForAll() / approve() - Standard ERC-721 approval functions

Token ID System:

• Starts from 1

• Auto-increments with each mint

• totalSupply() returns count of minted tokens

Test Script: erc721-nft/test.js - ✅ 6/6 tests passing

DAOFactory & DAO

Location: arbitrum-stylus-contracts/

DAOFactory Contract (Registry Pattern)

Address: 0xf4242a5bebdd12abc7d01ab9fd3f7473b3295d46

Implementation: dao-factory/src/lib.rs

Key Functions:

• registerDao(address daoAddress, string name, uint256 votingPeriod, uint256 quorumPercentage) - Registers externally deployed DAO

• getTotalDaosDeployed() - Returns total DAO count

• getAllDeployedDaos() - Returns all DAO addresses

• getDaosByCreator(address creator) - Returns DAOs created by address

• getDaoInfo(address daoAddress) - Returns DAO details (tuple)

Storage:

• deployed_daos[] - Array of all registered DAO addresses

• creator_to_daos - Mapping from creator to their DAOs

• dao_info - Mapping from DAO address to DaoInfo struct

Events:

• DAOCreated(address indexed daoAddress, string name, address indexed creator, uint256 votingPeriod, uint256 quorumPercentage, uint256 timestamp)

Test Script: dao-factory/test.js - ✅ 7/7 tests passing

DAO Contract

Address: 0x95d7bc3f2f8172298c2487dfeca23d86b09572f5

Implementation: dao/src/lib.rs

Features:

• Member management with voting power

• Proposal creation and voting

• Quorum-based execution

• Time-based voting periods

• Initialization via init() function

Key Structures:

struct Member {
    is_member: bool,
    voting_power: U256,
    joined_at: U256,
}

struct Proposal {
    id: U256,
    description: String,
    proposer: Address,
    for_votes: U256,
    against_votes: U256,
    start_time: U256,
    end_time: U256,
    executed: bool,
    passed: bool,
}

Key Functions:

• init(string name, address creator, uint256 votingPeriod, uint256 quorumPercentage) - Initialize DAO

• addMember(address member, uint256 votingPower) - Only members can add members

• removeMember(address member) - Remove member (not creator)

• createProposal(string description) - Create new proposal

• vote(uint256 proposalId, bool support) - Vote on proposal

• executeProposal(uint256 proposalId) - Execute proposal after voting period

• getTotalVotingPower() - Returns sum of all member voting powers

• getProposalInfo(uint256 proposalId) - Returns proposal details (tuple)

Voting Logic:

• Quorum: (totalVotes * 100) >= (totalVotingPower * quorumPercentage)

• Majority: forVotes > againstVotes

• Proposal passes if quorum met AND majority for

Events:

• MemberAdded(address indexed member, uint256 votingPower)

• MemberRemoved(address indexed member)

• ProposalCreated(uint256 indexed proposalId, string description, address proposer)

• VoteCast(uint256 indexed proposalId, address indexed voter, bool support, uint256 weight)

• ProposalExecuted(uint256 indexed proposalId, bool passed)

Test Script: dao/test.js - ✅ 12/12 tests passing

Airdrop Contract

Location: arbitrum-stylus-contracts/airdrop/

Address: 0x6239a115e23a11033930c1892eb6b67649c12f18

Implementation: airdrop/src/lib.rs

Features:

• Gas-efficient batch transfers

• Native token (ETH) distribution on Arbitrum Sepolia

• No contract storage needed (direct transfers)

• Payable functions for receiving ETH

Key Functions:

• init(address owner) - Initialize contract with owner

• airdrop(address[] recipients, uint256 amount) - Distribute same amount to all recipients (payable)

• airdropWithAmounts(address[] recipients, uint256[] amounts) - Distribute different amounts (payable)

• getBalance() - Returns contract balance

• transferOwnership(address newOwner) - Transfer ownership

• withdraw(address to) - Owner emergency withdrawal

Implementation:

• Uses transfer_eth() from Stylus SDK for gas-efficient transfers

• Validates total amount matches msg.value

• Validates all recipients are non-zero addresses

• Emits AirdropExecuted event after completion

• Uses #[payable] attribute to receive ETH

Security:

• Owner-only withdraw and ownership transfer functions

• Validates all inputs

• Reverts on transfer failures

Test Script: airdrop/test.js - ✅ 5/5 tests passing

YieldCalculator Contract

Location: arbitrum-stylus-contracts/yield-calculator/

Address: 0x70f749501b44ea186550dfca4e9f87a5d120bb4d

Implementation: yield-calculator/src/lib.rs

Features:

• Multi-token support (any ERC-20)

• APY-based yield calculation

• Time-based projections

• Deposit tracking per user

• ERC20 interface integration via Stylus SDK

Key Structures:

struct Deposit {
    depositor: Address,
    token_address: Address,
    amount: U256,
    apy: U256, // Basis points (10000 = 100%)
    deposit_time: U256,
    active: bool,
}

Key Functions:

• init(address owner, address contractAddress) - Initialize contract

• createDeposit(address tokenAddress, uint256 amount, uint256 apy) - Create new deposit

• calculateYield(uint256 depositId, uint256 timeInSeconds) - Calculate yield for time period

• getCurrentYield(uint256 depositId) - Get current accrued yield

• getTotalAmount(uint256 depositId) - Get principal + yield

• withdraw(uint256 depositId) - Withdraw deposit (principal + yield)

• getUserDeposits(address user) - Get all deposit IDs for user

• getDepositInfo(uint256 depositId) - Get deposit details (tuple)

• getStats() - Get contract statistics (tuple)

Implementation Details:

• Uses IERC20 interface from Stylus SDK for token interactions

• Uses Call::new_in(self) for mutating calls and Call::new() for view calls

• Stores contract address during initialization for self-referencing

• Uses StorageVec for deposit tracking

Security:

• Only depositor can withdraw their deposit

• Validates deposit is active

• Uses ERC20 interface for safe token transfers

• Checks contract balance before withdrawal

• Owner-only initialization

Events:

• DepositCreated(address indexed depositor, uint256 depositId, address indexed tokenAddress, uint256 amount, uint256 apy)

• YieldCalculated(address indexed depositor, uint256 depositId, uint256 yieldAmount)

• Withdrawn(address indexed to, uint256 depositId, uint256 amount)

Test Script: yield-calculator/test.js - ✅ 14/14 tests passing

Architecture Diagrams

Tool Execution Flow

Contract Interaction Flow

License

MIT License

Arbitrum Stylus Contracts

All contracts are implemented using Arbitrum Stylus, which allows writing smart contracts in Rust and compiling them to WebAssembly. This provides:

• Enhanced Performance: WASM execution is more efficient than EVM bytecode

• Gas Efficiency: Contracts are cached in ArbOS for cheaper calls

• Modern Language: Use Rust's type safety and modern tooling

• Full EVM Compatibility: Contracts work seamlessly with existing Ethereum tooling

Deployment Details

All contracts are deployed on Arbitrum Sepolia (Chain ID: 421614) using cargo-stylus CLI tool. See deployment-config.json for complete deployment information including:

• Contract addresses

• Deployment transactions

• Activation transactions

• Cache bid transactions

• Contract sizes and WASM sizes

• Deployment dates and status

Testing

Each contract includes comprehensive test scripts written in JavaScript using ethers.js:

• Airdrop: airdrop/test.js - 5/5 tests ✅

• DAO: dao/test.js - 12/12 tests ✅

• DAO Factory: dao-factory/test.js - 7/7 tests ✅

• ERC-20 Token: erc20-token/test.js - 14/14 tests ✅

• Token Factory: token-factory/test.js - 7/7 tests ✅

• ERC-721 NFT: erc721-nft/test.js - 6/6 tests ✅

• NFT Factory: nft-factory/test.js - 7/7 tests ✅

• Yield Calculator: yield-calculator/test.js - 14/14 tests ✅

Total: 72/72 tests passing (100%)

Factory Pattern (Registry)

The factory contracts use a registry pattern rather than deploying contracts directly:

1. Contracts are deployed externally using cargo-stylus deploy

2. After deployment, contracts are registered with the factory using registerToken(), registerCollection(), or registerDao()

3. The factory stores metadata and tracks creators

4. Factory provides query functions to discover and retrieve contract information

This pattern is used because Stylus contracts require:

• Separate activation step after deployment

• Large WASM bytecode size

• Complex deployment process

The factories act as discovery and metadata services, not deployment services.
